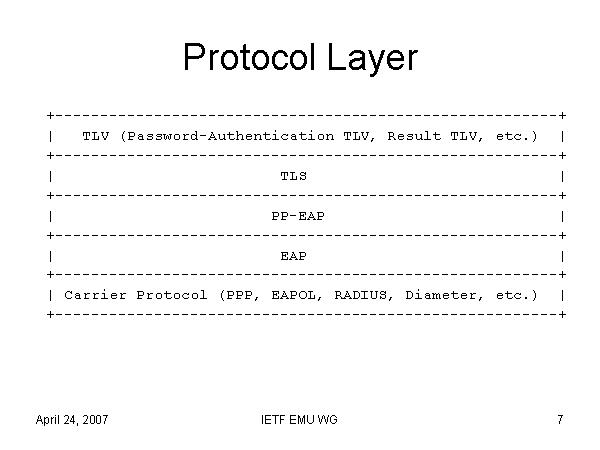

Protocol Layer +--------------------------------------------------------+ | TLV (Password-Authentication TLV, Result TLV, etc.) | +--------------------------------------------------------+ | TLS | +--------------------------------------------------------+ | PP-EAP | +--------------------------------------------------------+ | EAP | +--------------------------------------------------------+ | Carrier Protocol (PPP, EAPOL, RADIUS, Diameter, etc.) | +--------------------------------------------------------+ |
